Cable Track System Steel Carrier Type
CDKST130

Request a Quote Register to Download

Product Information

It is suitable for low- and high-speed (0.1 to 5m/sec) operation and moves in an Caterpillar system so it makes less vibration and noise also it can increases the life span of the cable carrier by three to four times. It is suitable for long direction of travel more than 100m, and where damage to the cable carrier is occurred due to inertial forces against high loads in the direction of movement, and where precision work is difficult due to vibration of movemonet.



Features

  • Excellent Durability
  • Divider Structure for Easy Cable Installation
  • Expansion of Cable Installation Space by Separator
  • Support for Hydraulic Hoses and Cables
  • Reduce Sagging Due to Self-Load and Load
  • FreeSpan

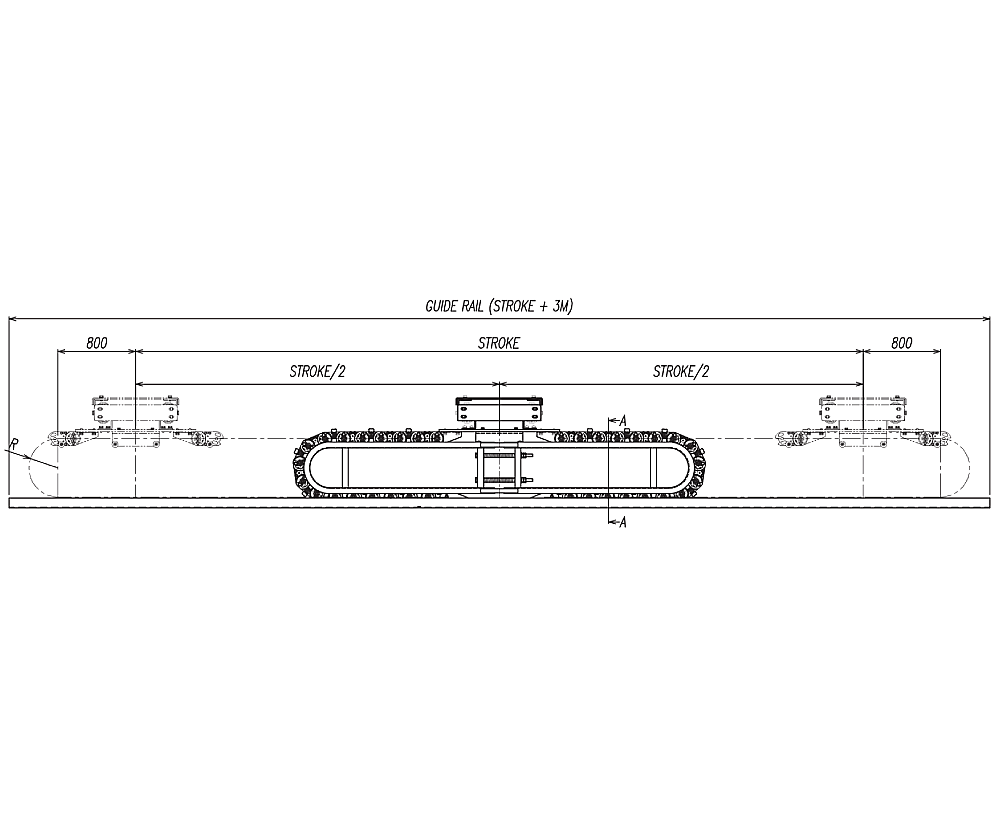

  • Load Diagram Self-Supporting Length

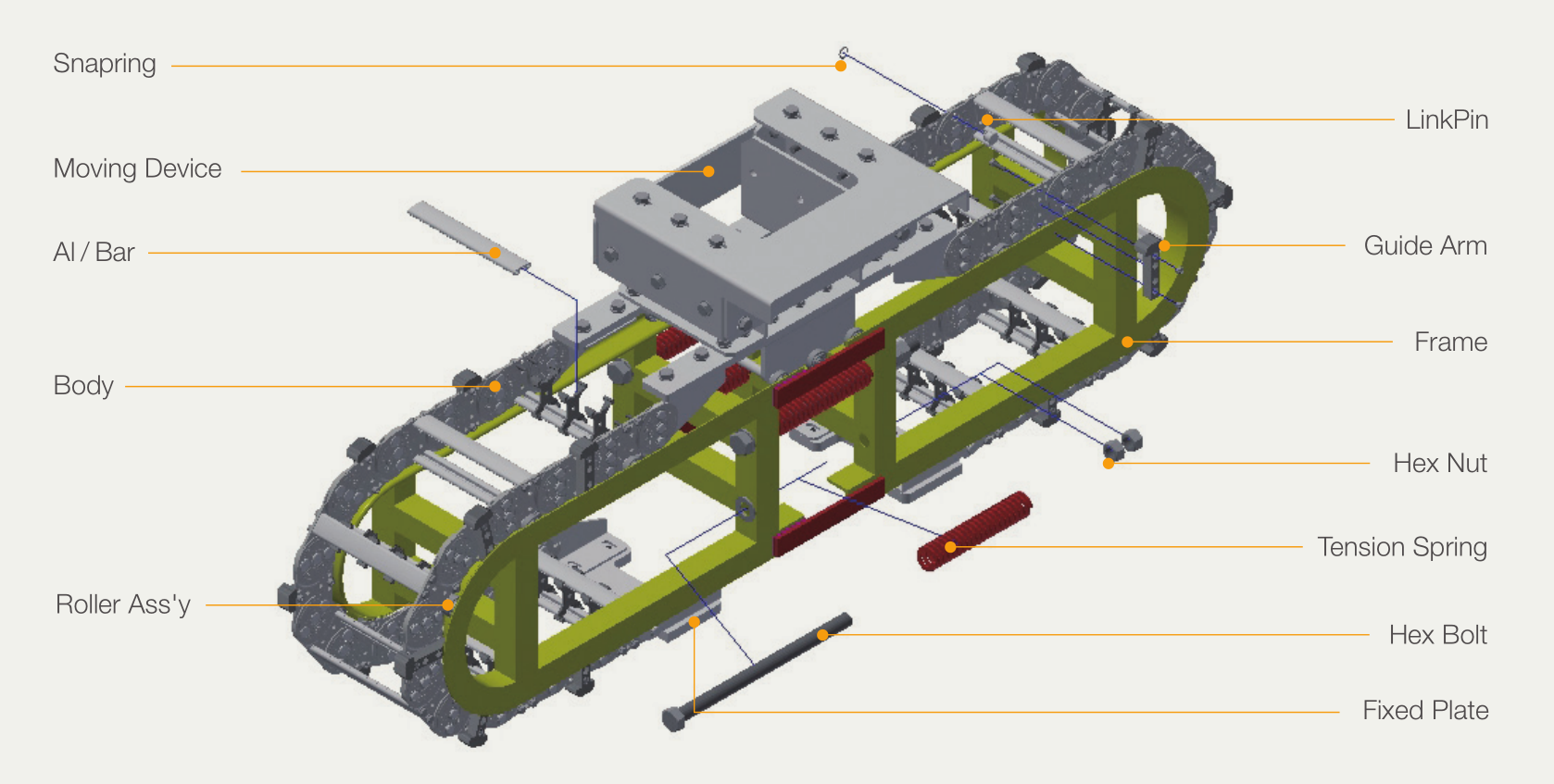

  • Structure

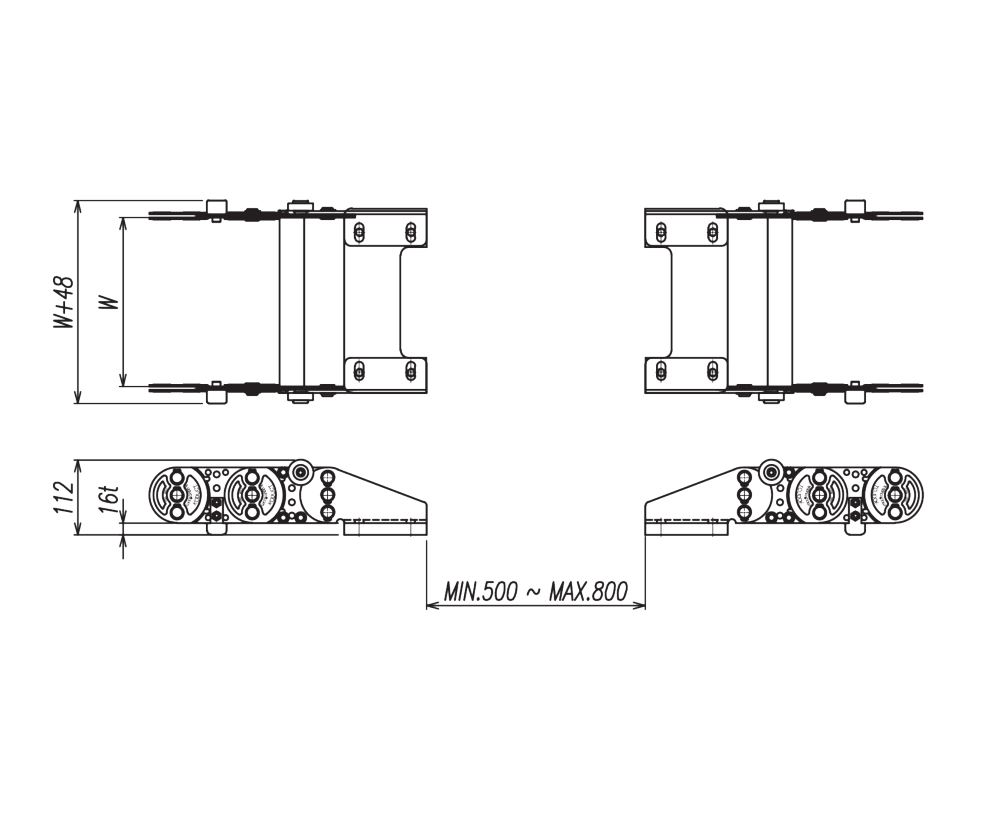

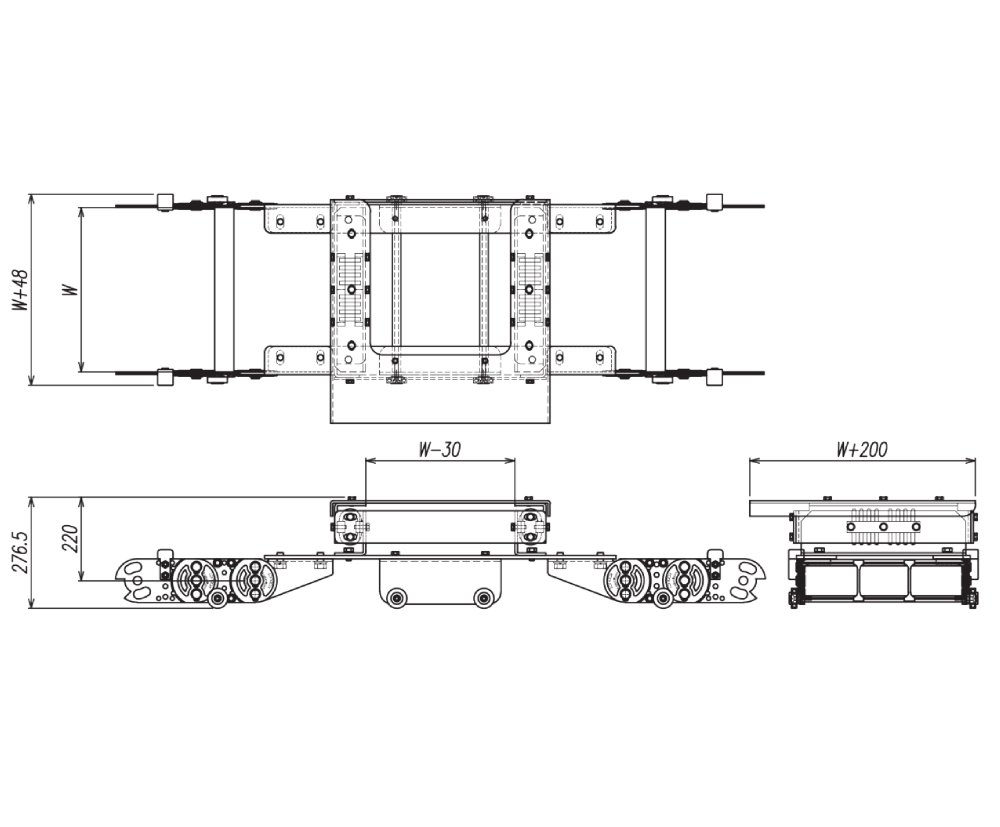

  • End Bracket Setting
  • Cable Carrier Specification Selection

Applications

Crane, Heavy industry, Iron and Steel Mill facility, Cold stripping and rolling facility, Machining center etc. Especially heavy loaded machine.

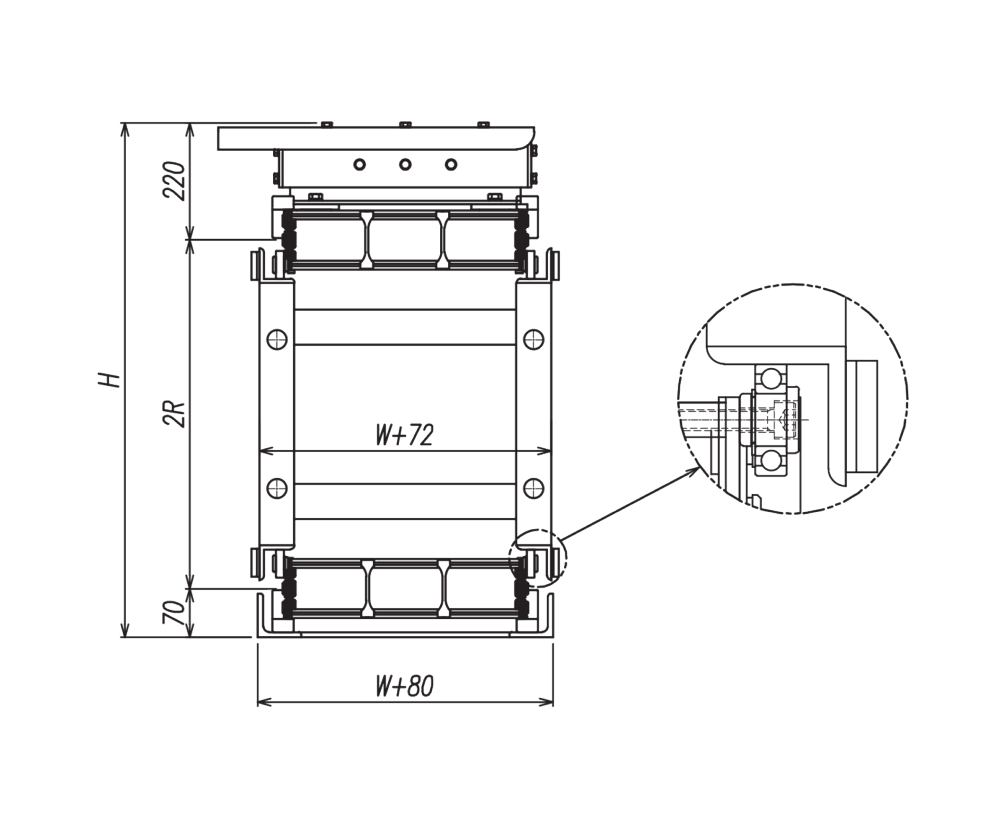

Specification

Type

W
mm (inch)

Radius
mm (inch)

Pitch
mm (inch)

H
mm (inch)

N
mm (inch)

DVDR
(ea)

1m
(kg)

EB Set
(kg)
CDKST130

100 (3.937)

 200 (7.874)  130
(5.118)		 690
(27.165) 		 2,720
(107.066) 		 1 34.78 3.170

125 (4.921)

 2 35.06
125 (4.921) 250 (9.843)

 790
(31.102) 		 3,020
(118.897)

150 (5.906)

 2 35.35

200 (7.874)

 2 35.81
200 (7.874) 300 (11.811)  890
(35.901) 		 3,320
(130.708)

250 (9.843)

 3 36.36
250 (9.843) 400 (15.748)

 1,090
(42.913) 		 3,920
(154.331)

300 (11.811)

 3 36.82

350 (13.779)

 4 37.38
350 (13.779) 500 (19.69)  1,290
(50.787) 		 4,520
(177.953)

400 (15.748)

 4 37.85

(1inch=25.4mm)
Weight Base: R400



Full Catalogue

Please download the full catalogue here.
