Foot Mount
HEAVY DUTY FOOT MOUNT
PTF-TR24X150 C/W PTF-FM100BG
Product Information
Material:
Thread Rod for Pivot Levelling Feet : Steel
Base for Pivot Feet (Without Anti-Slipped Plate) : Zinc Die-Cast, without Bolt-Down Holes
Flat Jam Nut M24 (Nut Din 439 for Threaded Rod) : Steel

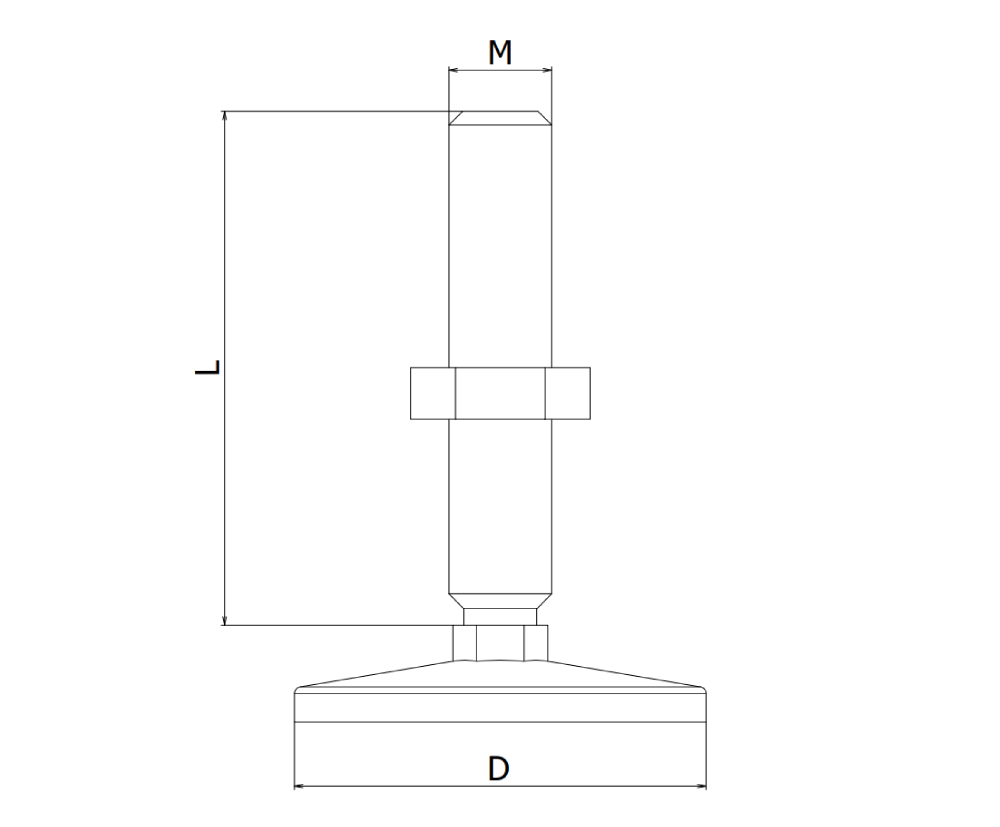

Specifications
| Part Name | Part No | L | D | M | Max Load |
|---|---|---|---|---|---|
| Threaded Rod | 098AM24150M | 150 mm | - | M24 | 3610 kg |
| Base for Pivot Feet | 098A100ZS | - | 100 mm | - | - |
| Flat Jam Nut M24 | 4DIN439BM24M | - | - |
M24 |
- |
