Wheels
Auto Caster Wheel
PTF-300S
Product Information

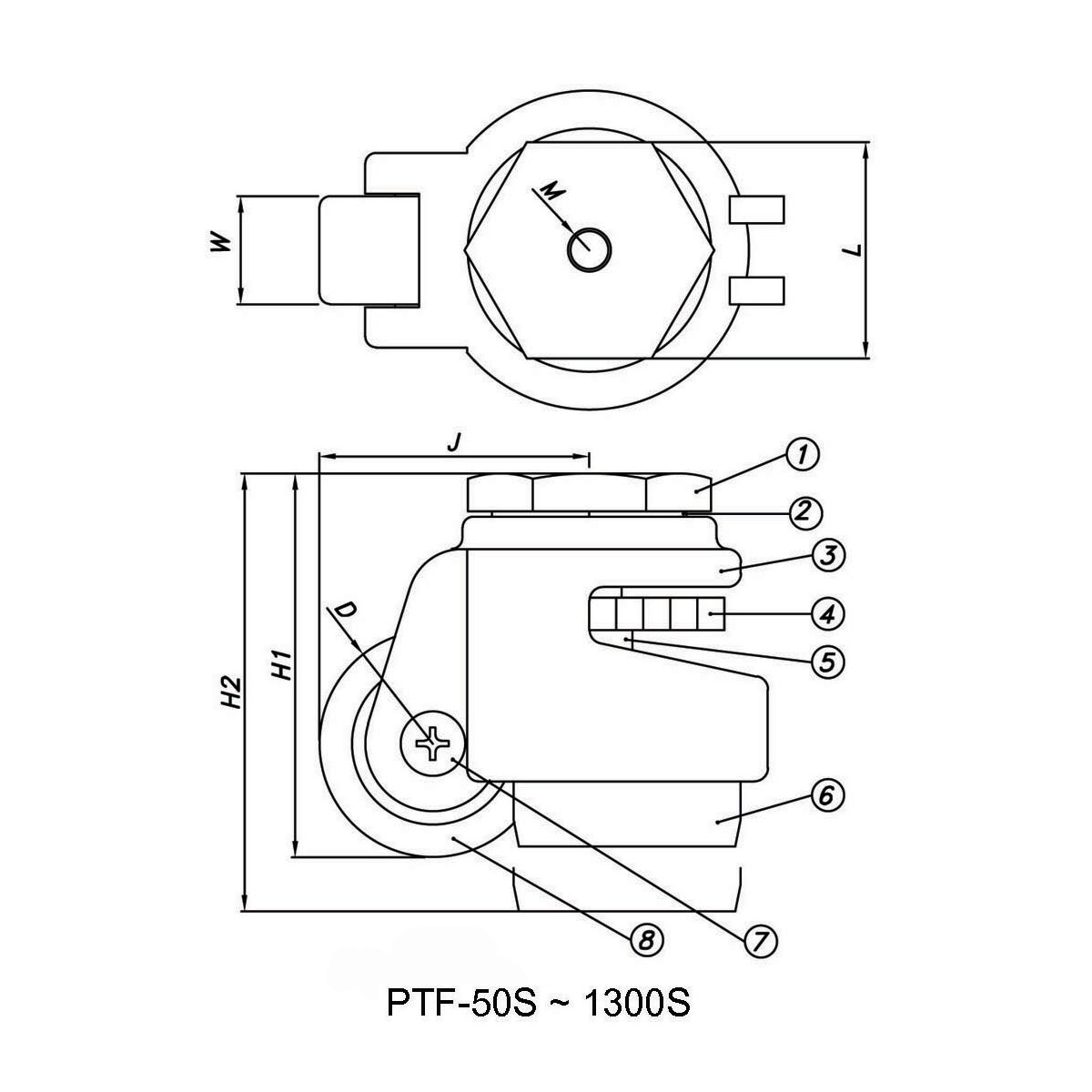

Material
| No. | Parts | Materials | Treatments |
|---|---|---|---|
| 1 | Top Plate | SM45C | Zn Galvanized |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Frame | ADC8 | Ivory Powder Coated |
| 4 | Handle | Nylon-6 | Red |
| 5 | Leveller (M-8) | SM45C | Zn Galvanized |
| 6 | Foot | NBR | Black |
| 7 | Pin | SM45C | Zn Galvanized |
| 8 | Wheel | Nylon-6 | Black |
Specifications
|
Part No. |
Wheel ØD |
Wheel Width |
Min-Max Height |
Plate Size |
Dimension J |
Bolt Holes Size |
Holes Size Ø |
Load Capacity |
|---|---|---|---|---|---|---|---|---|
| PTF-300S | 50 | 22 | 83-93 | 46 | 61.5 | NA | M12 | 170 kg |
*All dimension in mm
