PTP-4040L2SO-8
PTP-4040L2SO-8

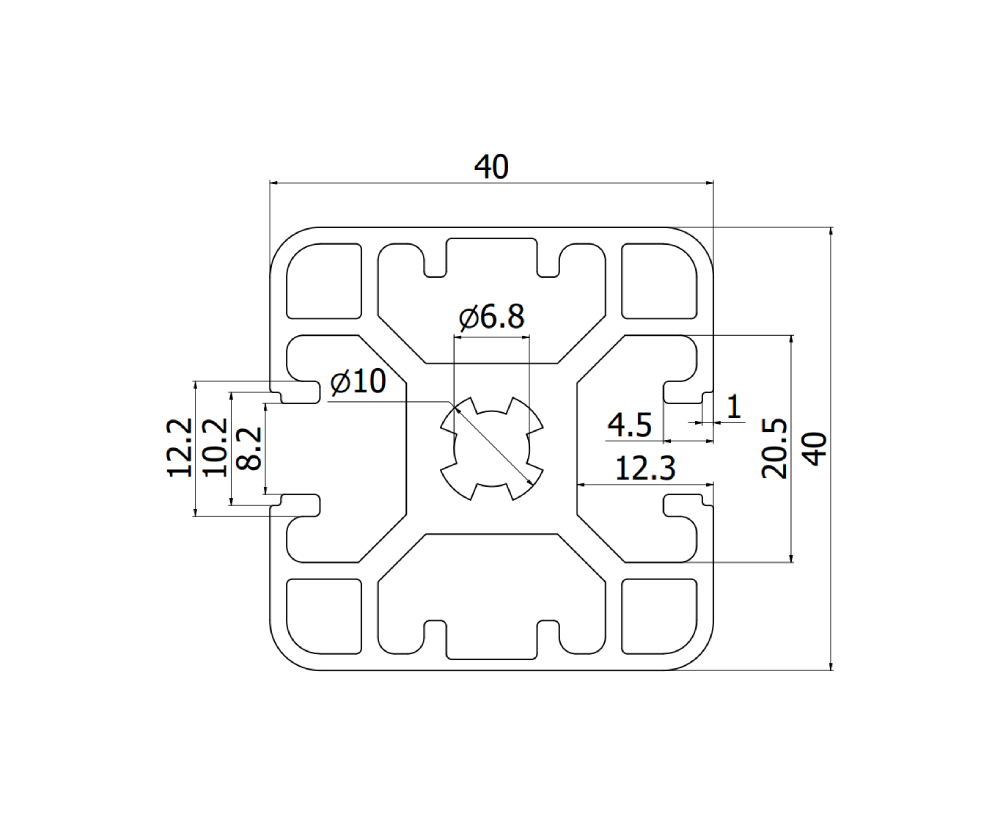

40series PTP-4040L2SO-8

Product Information

This profile belongs to “-8” group slot profile. Profile specially design with both opposite sides covered and 2 slots in between.

MaterialWeightLengthSection ModulesMass of Inertia
6063-T5 Aluminium 1.51 kg/m 5 meters Zx 3.78 cm3
Zy 4.16 cm3
Ix 7.55 cm4
Iy 8.32 cm4
