Hybrid Carrier Gantry Robot (Long Distance)
KH526-S

Product Information

Light and durable, using engineering plastics with excellent impact strength. Long distance application reduces noise more than 10dB compared to the  existing cable carriers. Dues to its durable product structure, it rarely breaks when moving at high speeds, and its smooth operation makes it suitables for high-speed movement. In particular, it is designed to minimize noise caused by friction and vibration.



Features

  • Noice Minimization Structure
  • Excellent Durability
  • Use LinkPin Type Multi-Radius Pin
  • Divider Structure for Easy Installation

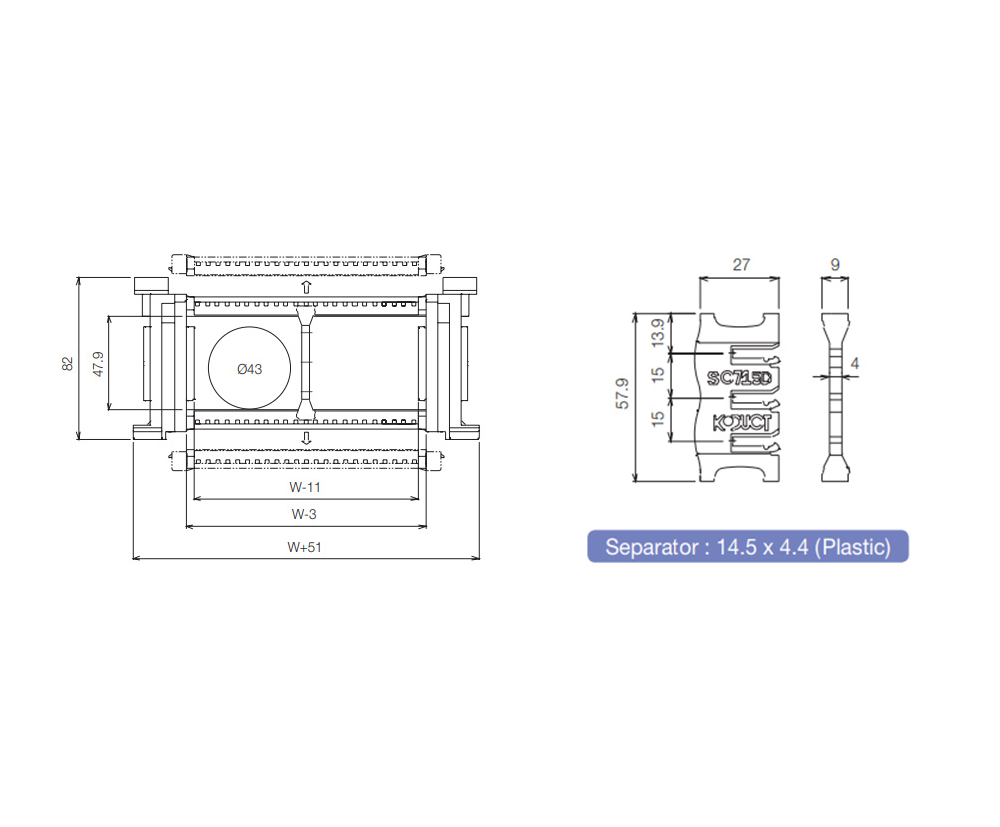

  • Expansion of Cable Installation Spave by Separator
  • Guide Channel

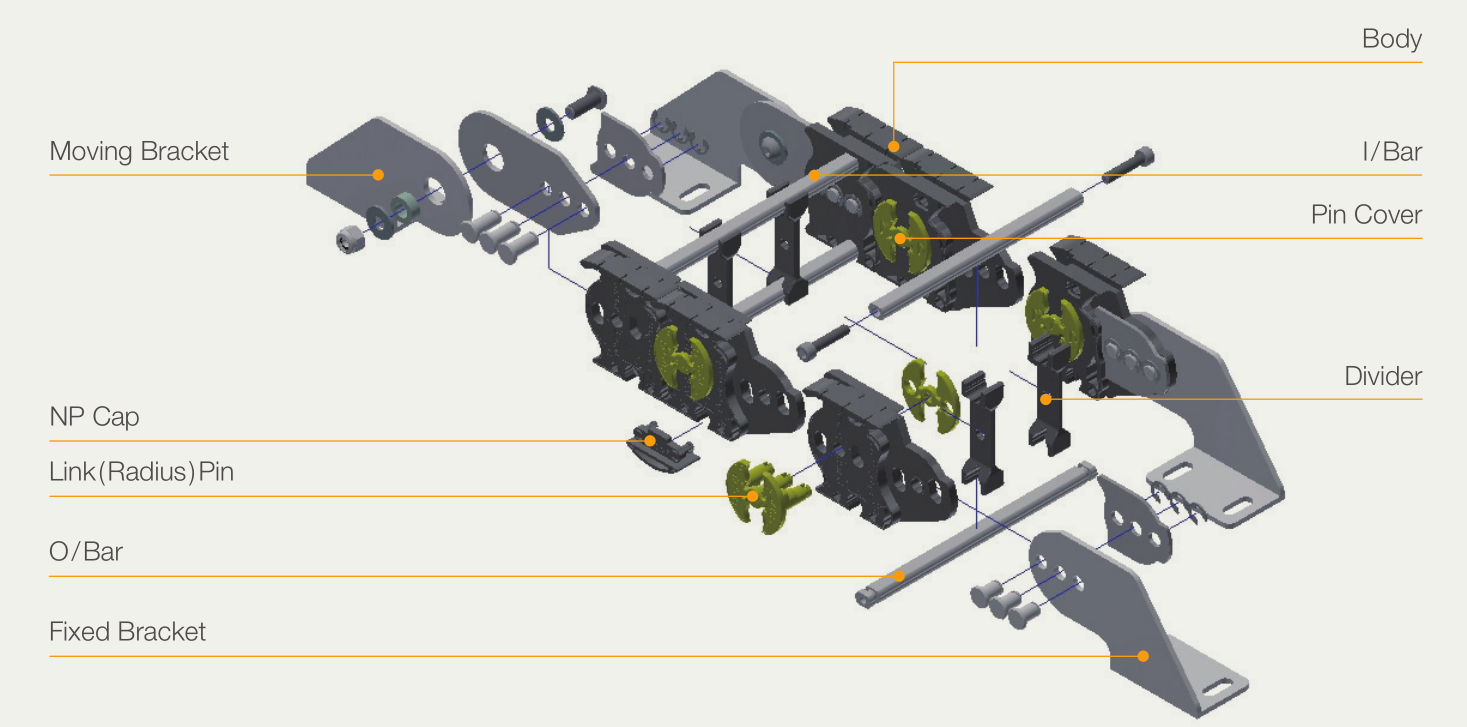

  • Structure

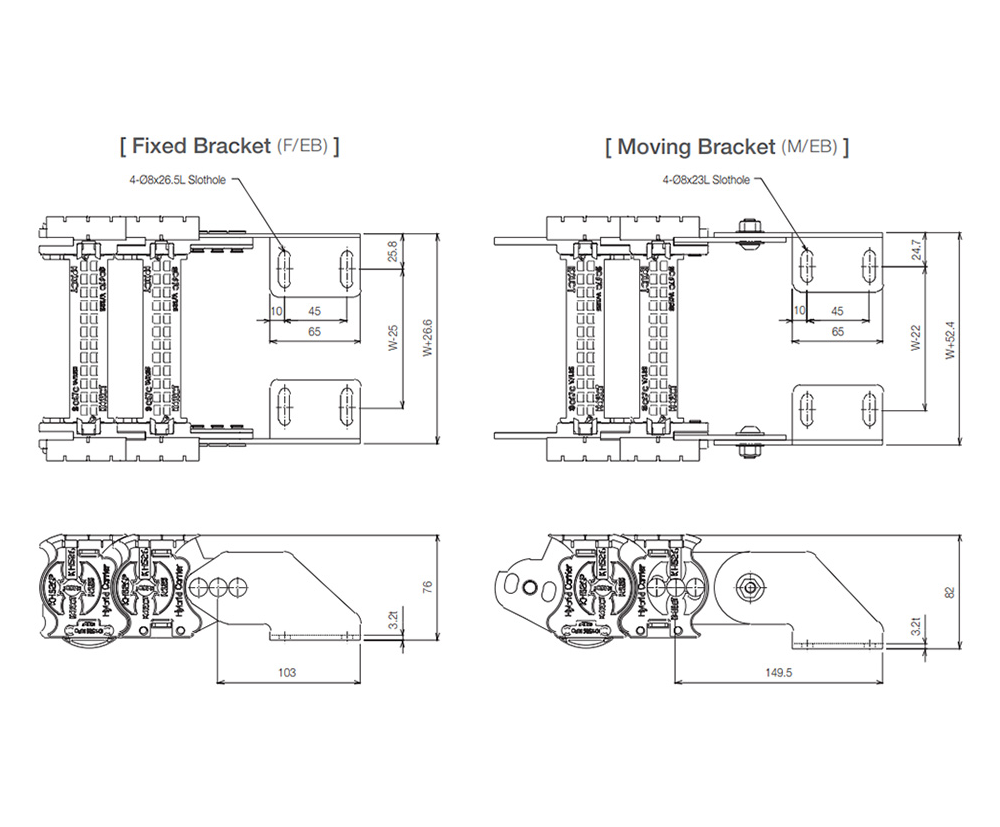

  • End Bracket Setting Example

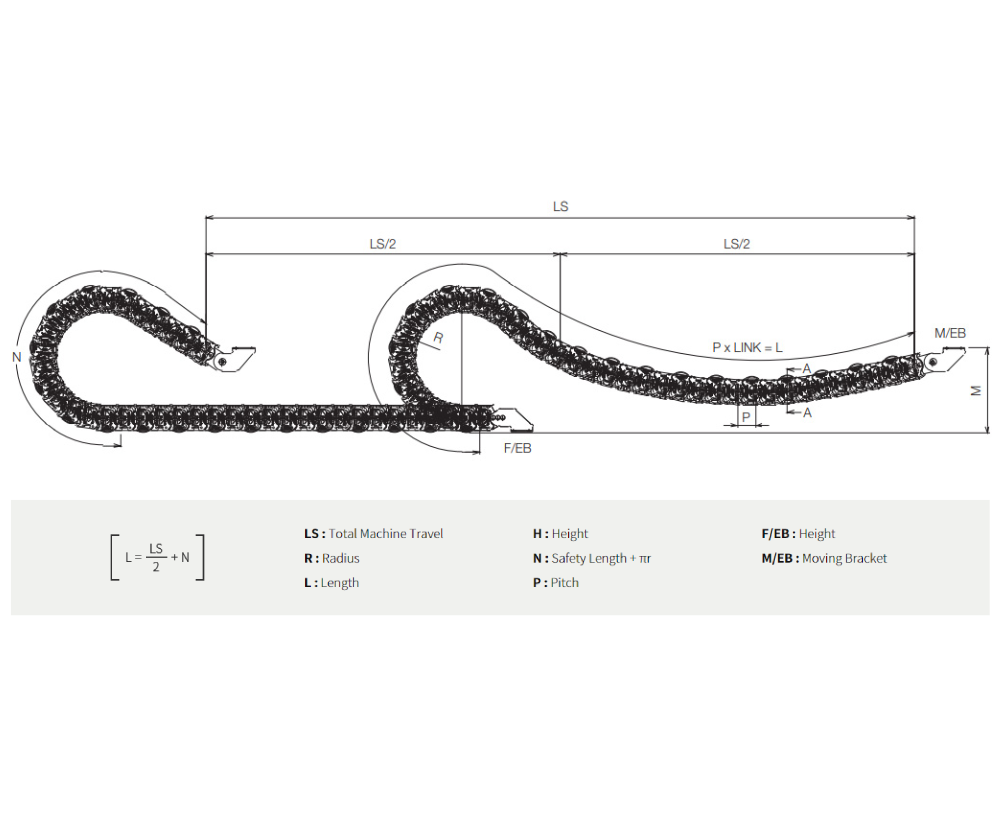

  • Cable Carrier Specification Selection

Applications

High-speed Gantry Robot, Robot Carriage etc.



Specification:

Type

W
mm (inch)

Radius
mm (inch)

Pitch
mm (inch)

M
mm (inch)

N
mm (inch)

DVDR
(ea)

1m
(kg)

EB Set
(kg)

KH526/S 65 (2.559) 125
(4.921)
52.6
(2.070)
250
(9.842)
1,310
(51.574)
0 3.297 1.279
80 (3.149) 1 3.417
100 (3.937) 1 3.625
100 (3.937) 175
(6.889)
1,470
(57.874)
1 3.625
125 (4.921) 2 3.746
150 (5.905) 2 3.831
150 (5.905) 225
(8.858)
1,630
(64.173)
2 3.831
175 (6.889) 2 3.917
200 (7.874) 2 4.002
225 (4.921) 275
(7.087)
1,790
(70.472)
3 4.123
250 (9.842) 3 4.208

(1inch=25.4mm)
