KP Carrier Standard Type (Small)
KP20

Request a Quote Register to Download

Product Information

Using engineering plastic, it is light and durable, divided into all in one and detachable body, and easy to assemble and dissemble, making it easy to repair.



Features

  • Excellent Durability.
  • Easy to Assemble of the Bodylink.
  • Easy if Repair.
  • Reduce sagging dues to Self-Load and Load
  • Prevent Cable and Hose Movements.

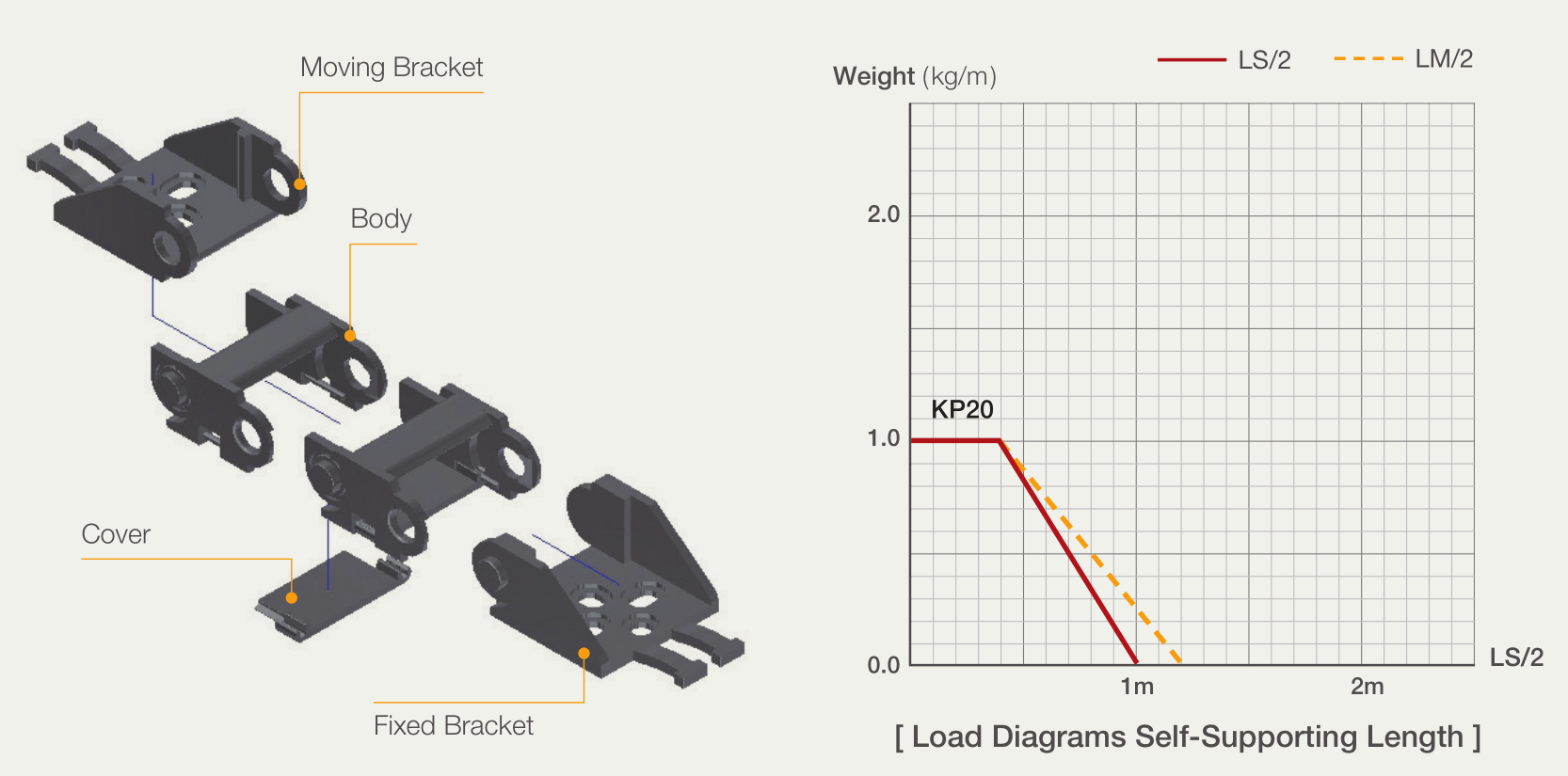

  • FreeSpan; The length of the carrier without sagging by Self-Load is called “FreeSpan”

Applications

  • Gantry robot equipment, Inspection equipment etc



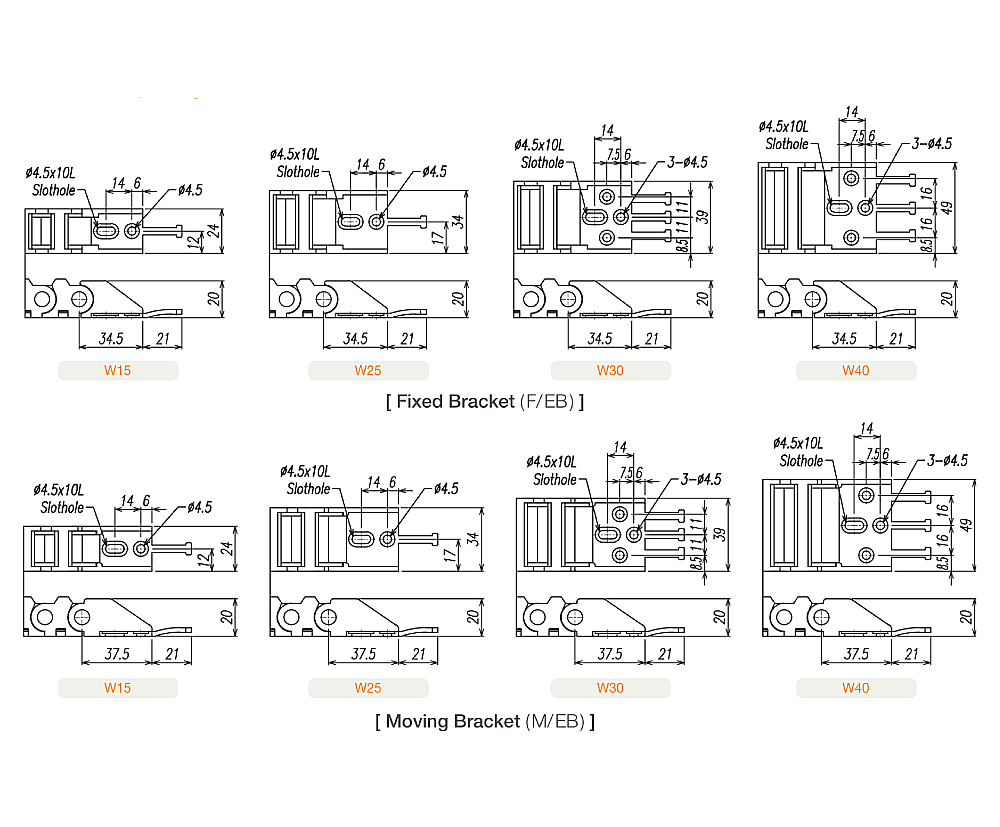

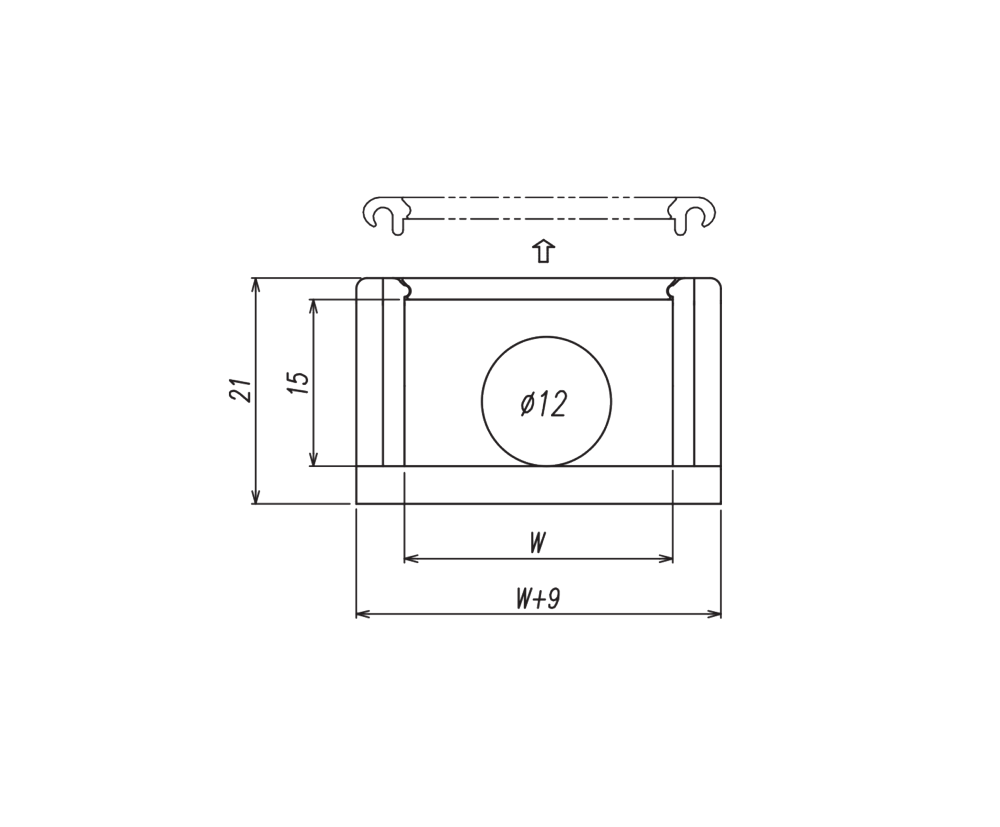

Specification

Type

W
mm (inch)

Radius
mm (inch)

Pitch
mm (inch)

Height
mm (inch)

N
mm (inch)

1m
(kg)

EB Set
(kg)
KP20 15 (0.590)  18 (0.708) 20
(0.787)		 56 (2.204) 136 (5.354) 0.243 0.012
 25 (0.984) 28 (1.102)   76 (2.992)  168 (6.614) 0.284   0.013
 30 (1.181) 37 (1.456)   94 (3.700)  196 (7.716) 0.297   0.016
 40 (1.574) 50 (1.968)   120 (4.724)  237 (9.330) 0.347   0.018

(1inch=25.4mm)
