Fork Carrier
PL Cover Type (Short Distance)
CDP080
Product Information
Light and durable, using engineering plastics with excellent impact strength. Apply detachable radius pin, easily adjust by changing only radius pin. Also, it is a unique and smart carrier that can maximize the efficiency of material management. 3 Pin structurelink pin (Radius) is excellent tension, the tensile strength is 20 percent better than other companies' product. By strengthening the thickness and width of the cover and minimizing the contact surface of the cables and hoses, the product's damage rate was reduced and the life of the cables and hoses is extended.
Features
- Excellent durability
- Use Linkpin Type Multi-Radius Pin
- Divider Structure for easy Cable Installation

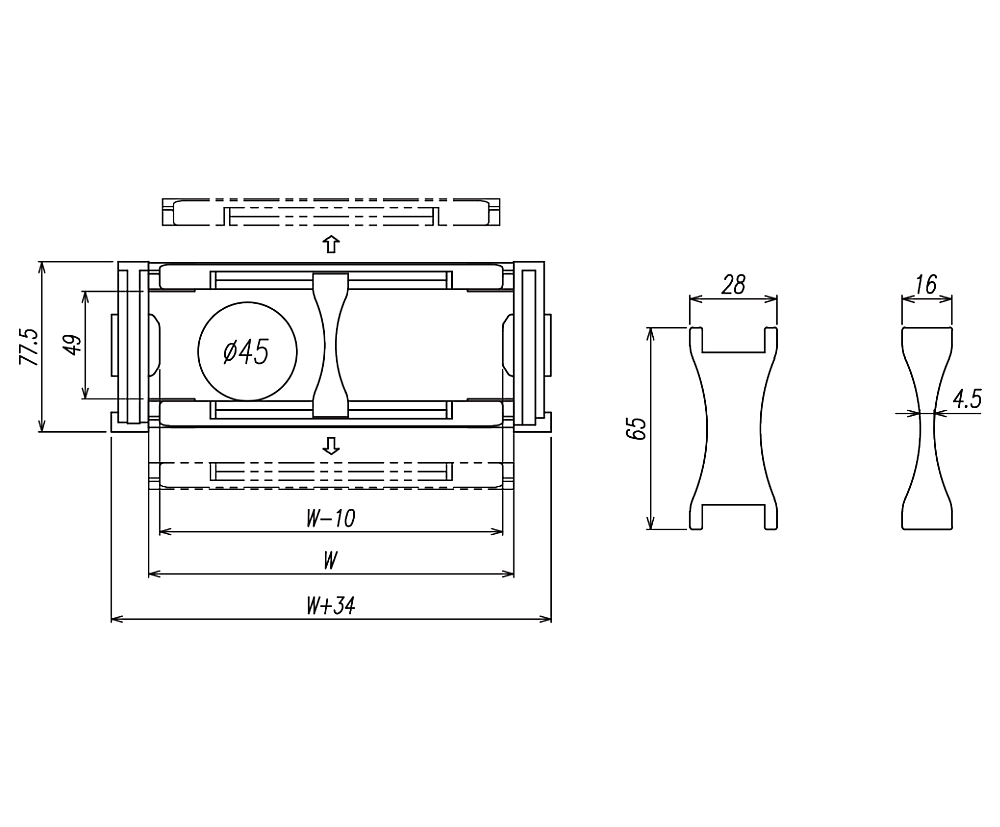

- Expansion of Cable Installation Space by Separator
- Optimized Cover Structure

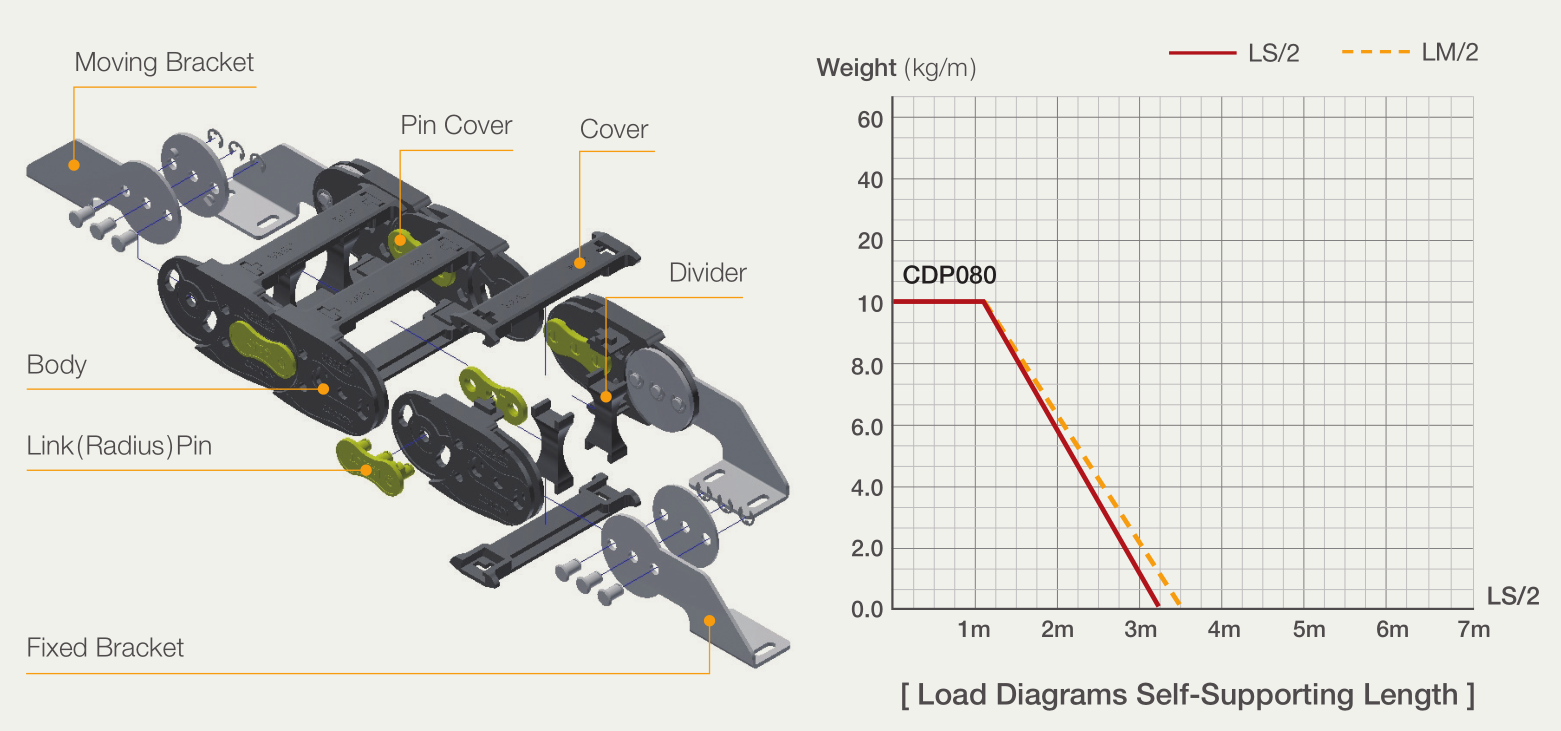

- Highly Durable BAR Assembly Structure

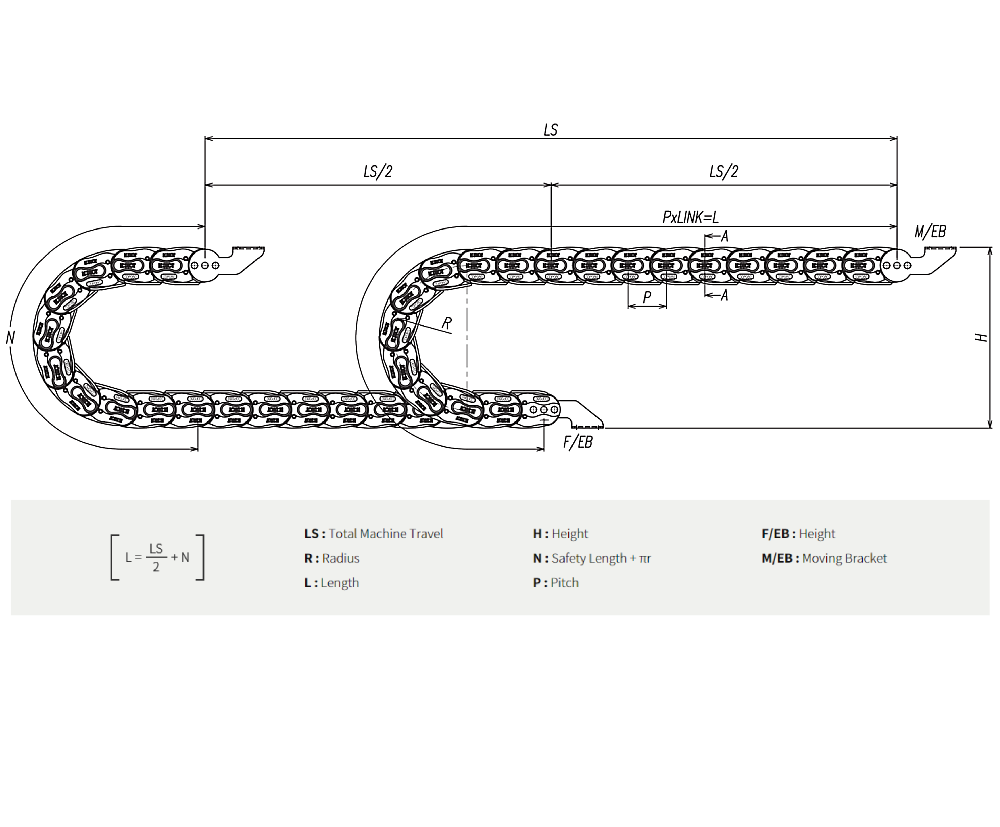

- FreeSpan; The length of the carrier without sagging by Self-Load is called “FreeSpan”
Applications
Goliath Crane, Gantry Robot, Machine Tool, Welding Machine, Cutting Machine, etc.

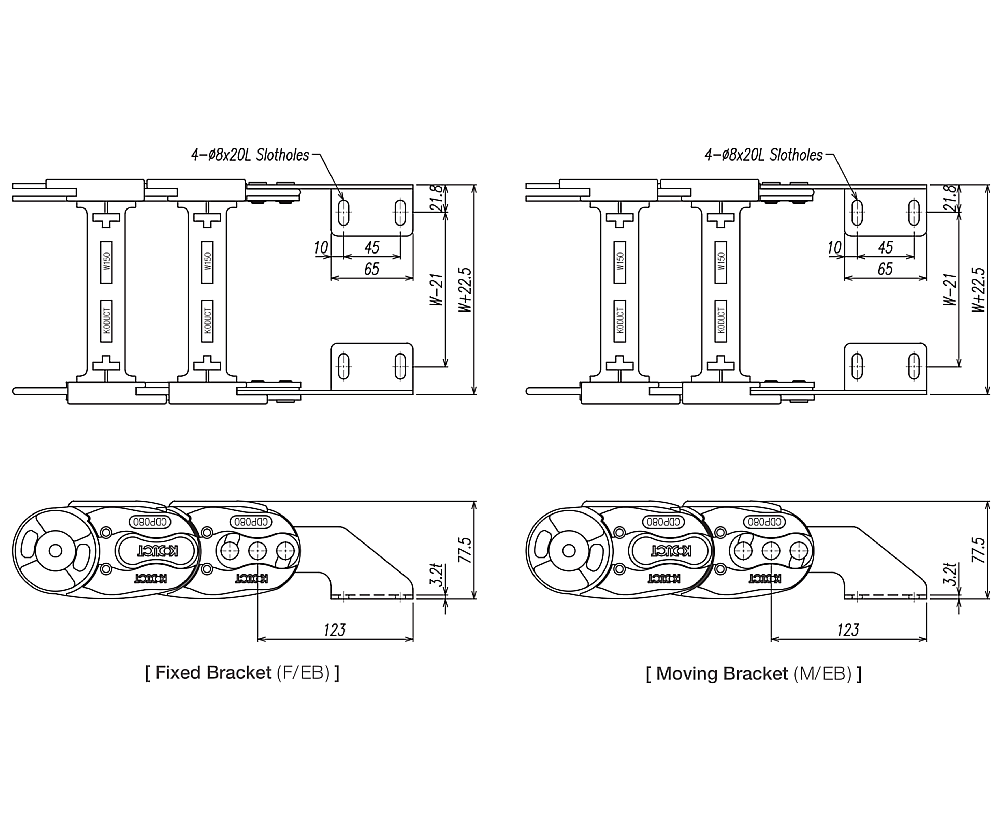

Specification
|
Type |
W |
Radius |
Pitch |
Height |
N |
DVDR |
1m |
EB Set |
|---|---|---|---|---|---|---|---|---|
| CDP080 | 100 (3.937) | 150 (5.906) |
80 (3.150) |
376 (14.803) |
791 (31.142) |
1 | 3.060 | 1.435 |
| 150 (5.905) | 2 | 3.416 | ||||||
| 150 (5.905) | 200 (7.874) |
476 (18.740) |
948 (37.323) |
2 | 3.416 | |||
| 200 (7.874) | 2 | 3.851 | ||||||
| 200 (7.874) | 250 (9.843) |
576 (22.039) |
1,105 (43.504) |
2 | 3.851 | |||
| 250 (9.843) | 3 | 4.132 | ||||||
| 300 (11.811) | 3 | 4.607 | ||||||
| 300 (11.811) | 280 (11.024) |
636 (25.039) |
1,199 (42.205) |
3 | 4.607 | |||
| 350 (13.779) | 4 | 4.631 | ||||||
| 350 (13.779) | 400 (15.748) |
876 (34.844) |
1,576 (62.047) |
4 | 4.631 | |||
| 400 (15.748) | 4 | 4.995 |
(1inch=25.4mm)
