PTP-8080CR-10
PTP-8080CR-10

80series PTP-8080CR-10

Product Information

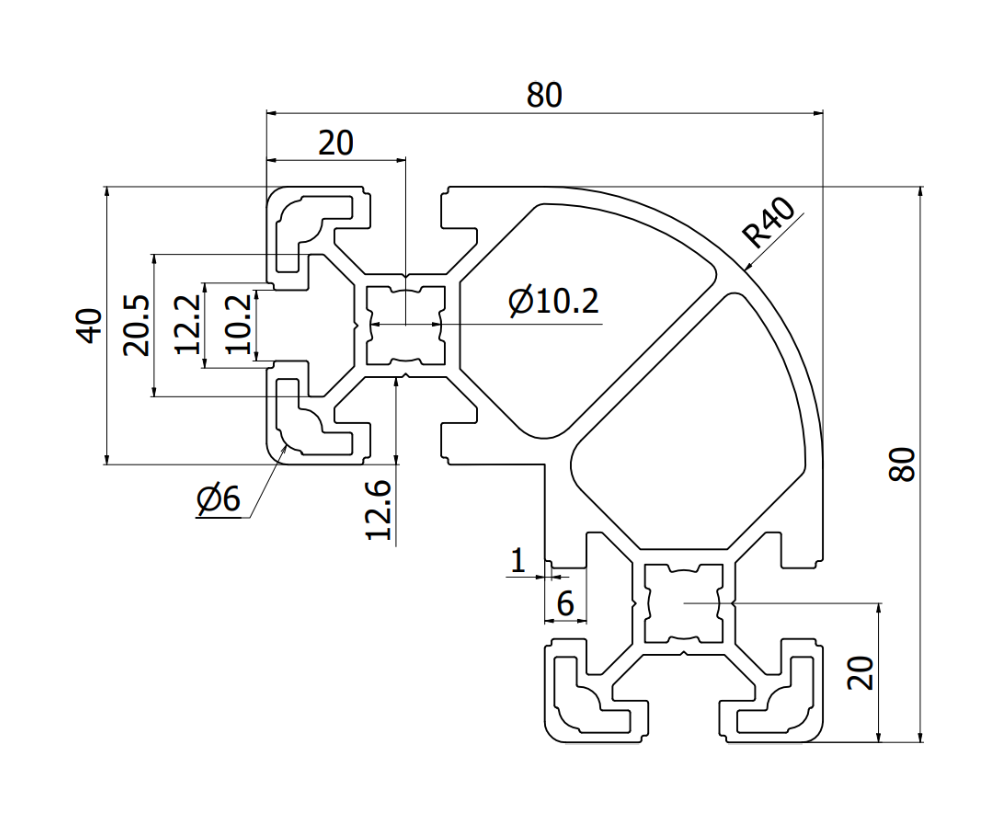

This profile belongs to “-10” group slot profile. Profile specially design with curved covered and 2 slot on side.



MaterialWeightLengthSection ModulesMass of Inertia
6063-T5 Aluminium 3.49 kg/m 5.6 meters Zx 8.35 cm3
Zy 24.12 cm3
Ix 36.53 cm4
Iy 105.49 cm4
